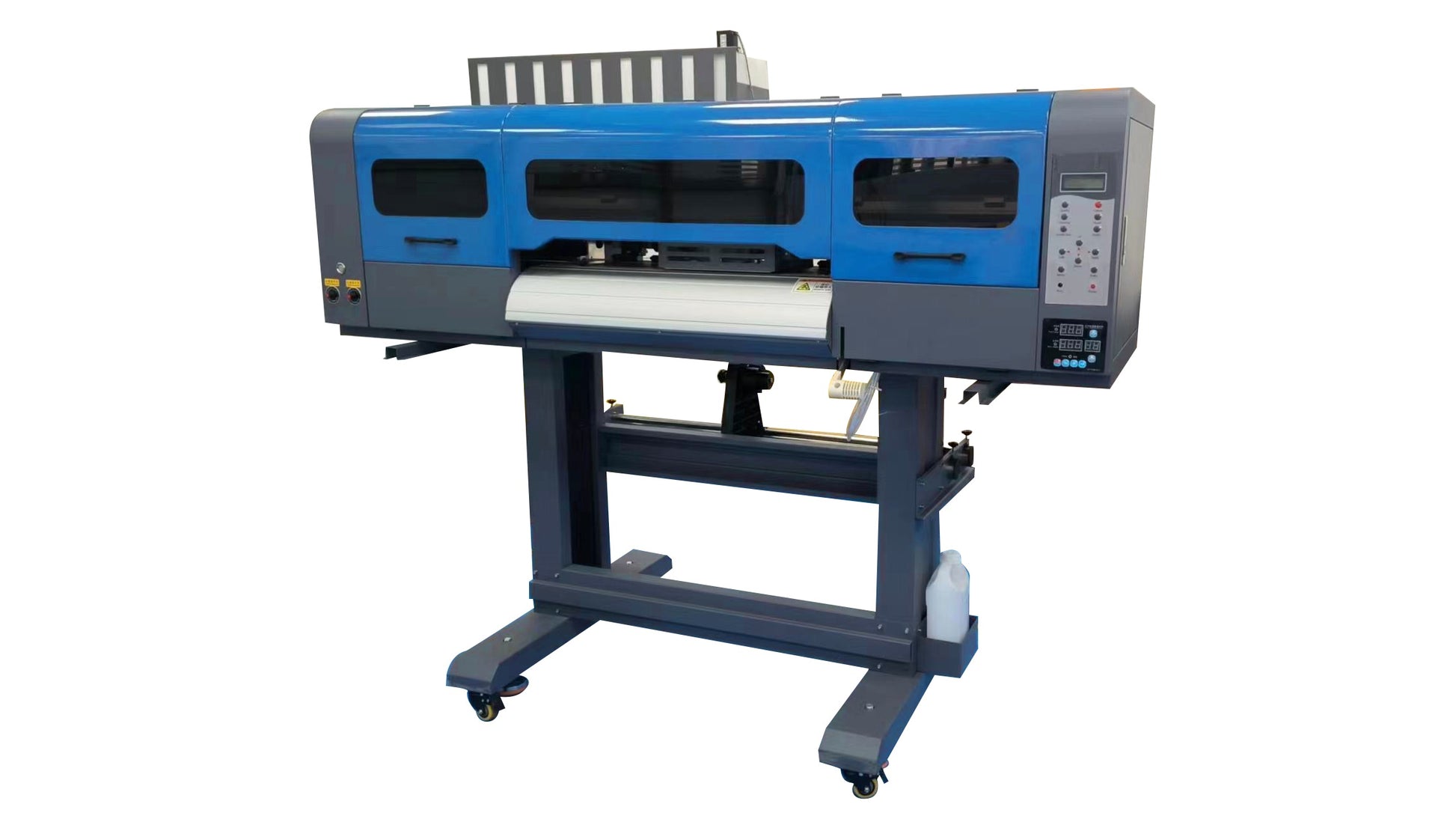

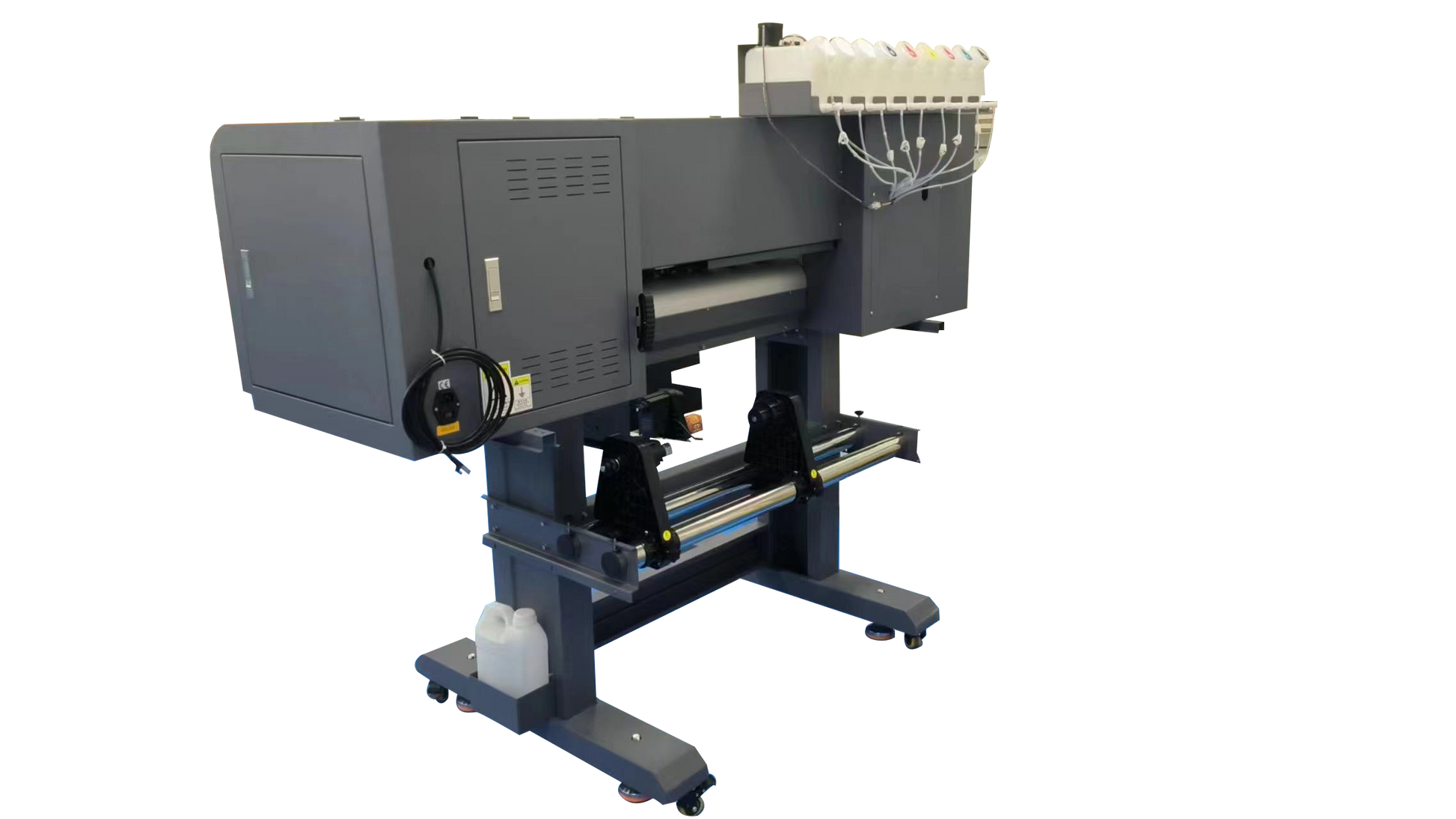

NEXUS MODEL #6 - 24 Inch Wide Format - DTF Printer & Shaker / Oven Bundle / 3 - i3200 Printheads / 9 Color Ink System

PRINTER SPECIFICATION

• Model number - NEXUS 62439
• Printhead - 3 headed I3200
• Print Direction - Bidirectional / unidirectional printing -

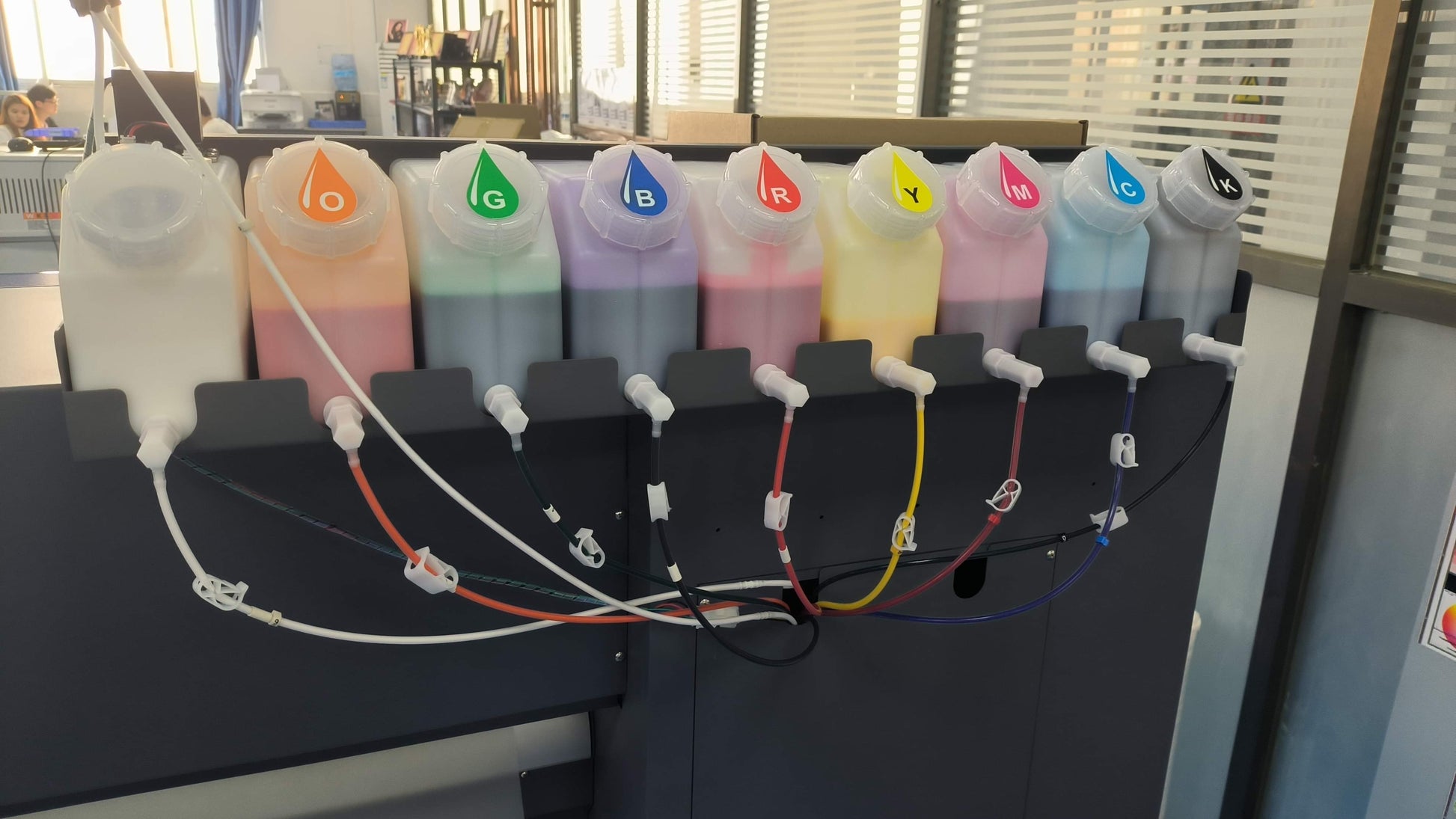

• Ink Colors - K,C,M,Y,R,G,B,OR+W - 9 Colors
• Ink Capacity - 1000ML
• Ink type - NEXUS DTF INK

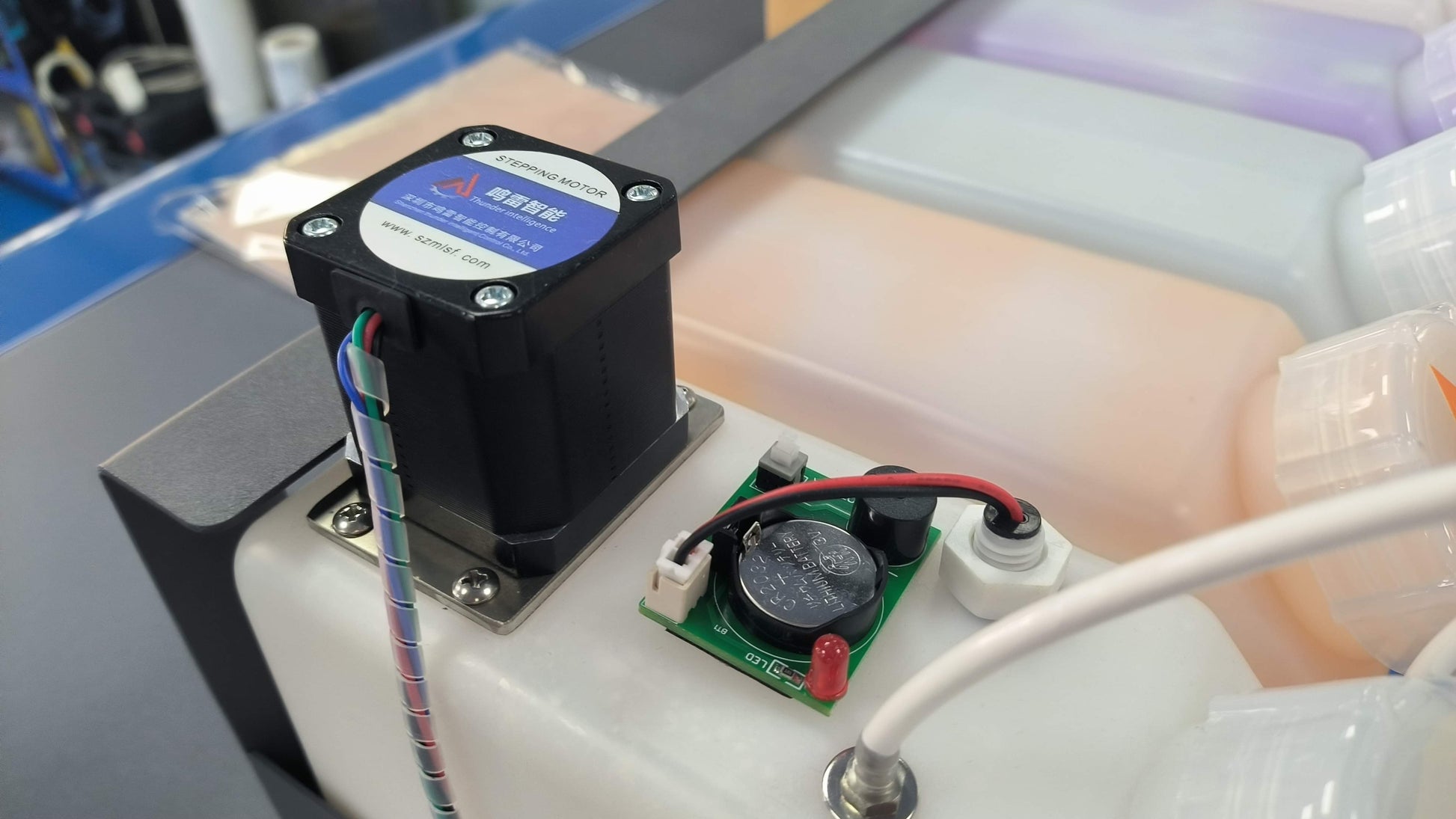

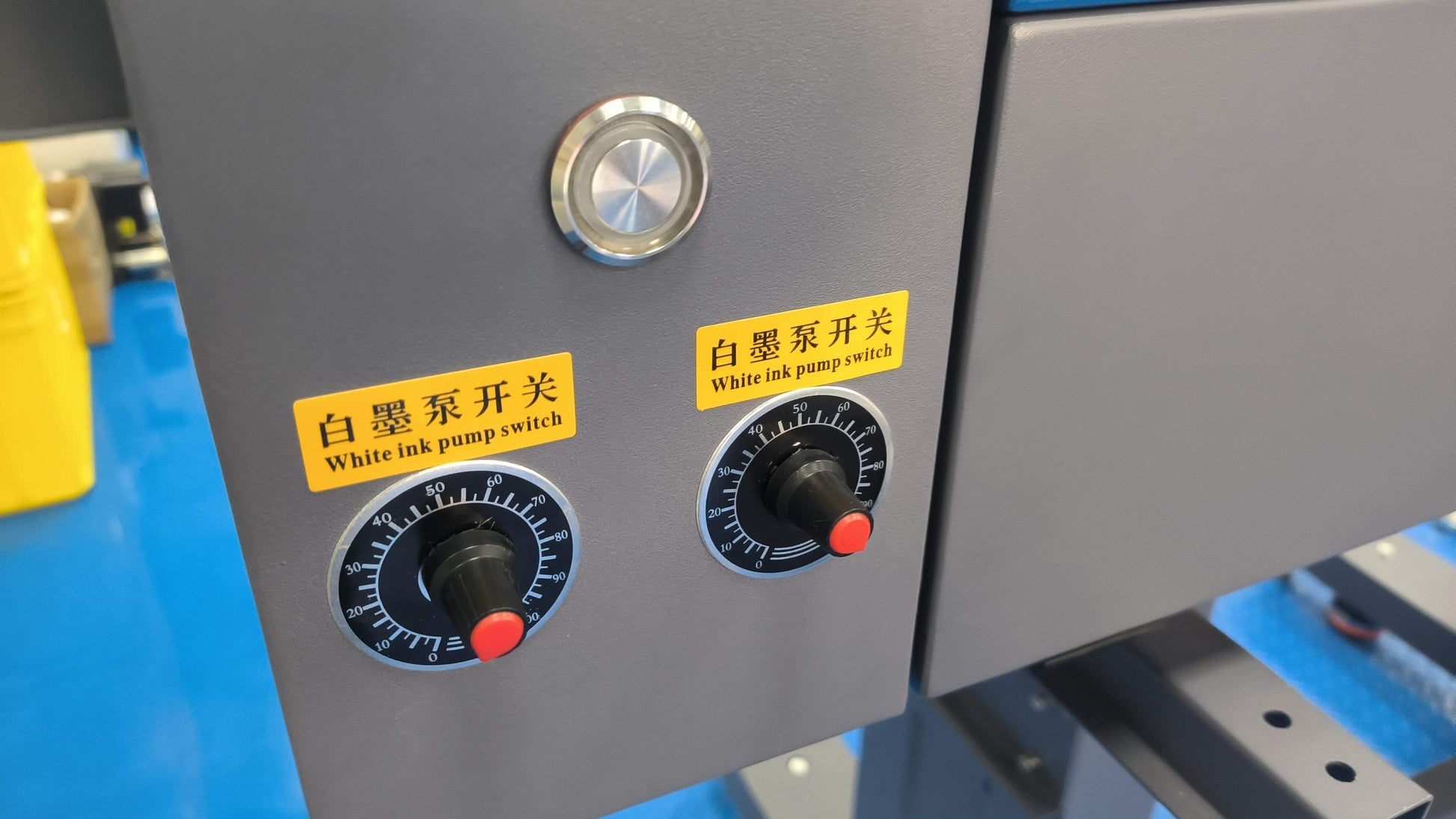

• Ink system - White ink automatic mixing system
• Paper type - PET FILM ROLL
• Print Size - 24 Inch MAX
• Heat - two-stage heating (front and rear)
• Print Software - Honson
• Mapping software -  Maintop7.0
• Operating system - Windows 7 10 11 - (Does Not work With MAC)
• Working Environment - 20-32℃ / 45-70% - Temperature 20-32°C / Humidity 45-70%

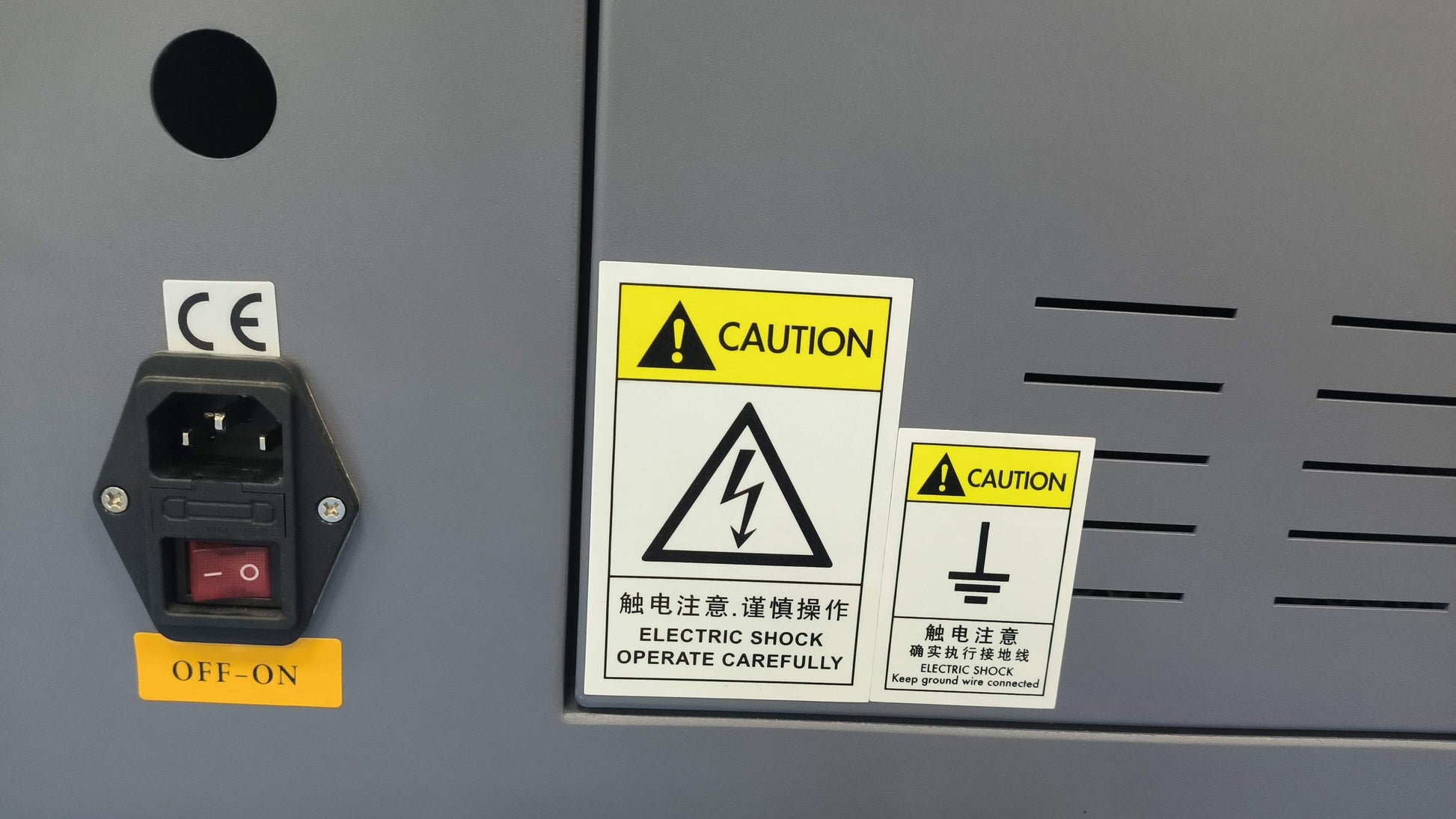

• Power Requirement - AC220V / 110V +/-10%, 50/60HZ 1000W
• Maximum print resolution - 4apss：540dpi 6pass：720dpi 8pass：1440dpi
• Connection port -  1000 megabit Ethernet port
• Package Size - 74"x 34" x 30"
• Package Weight - 540lbs

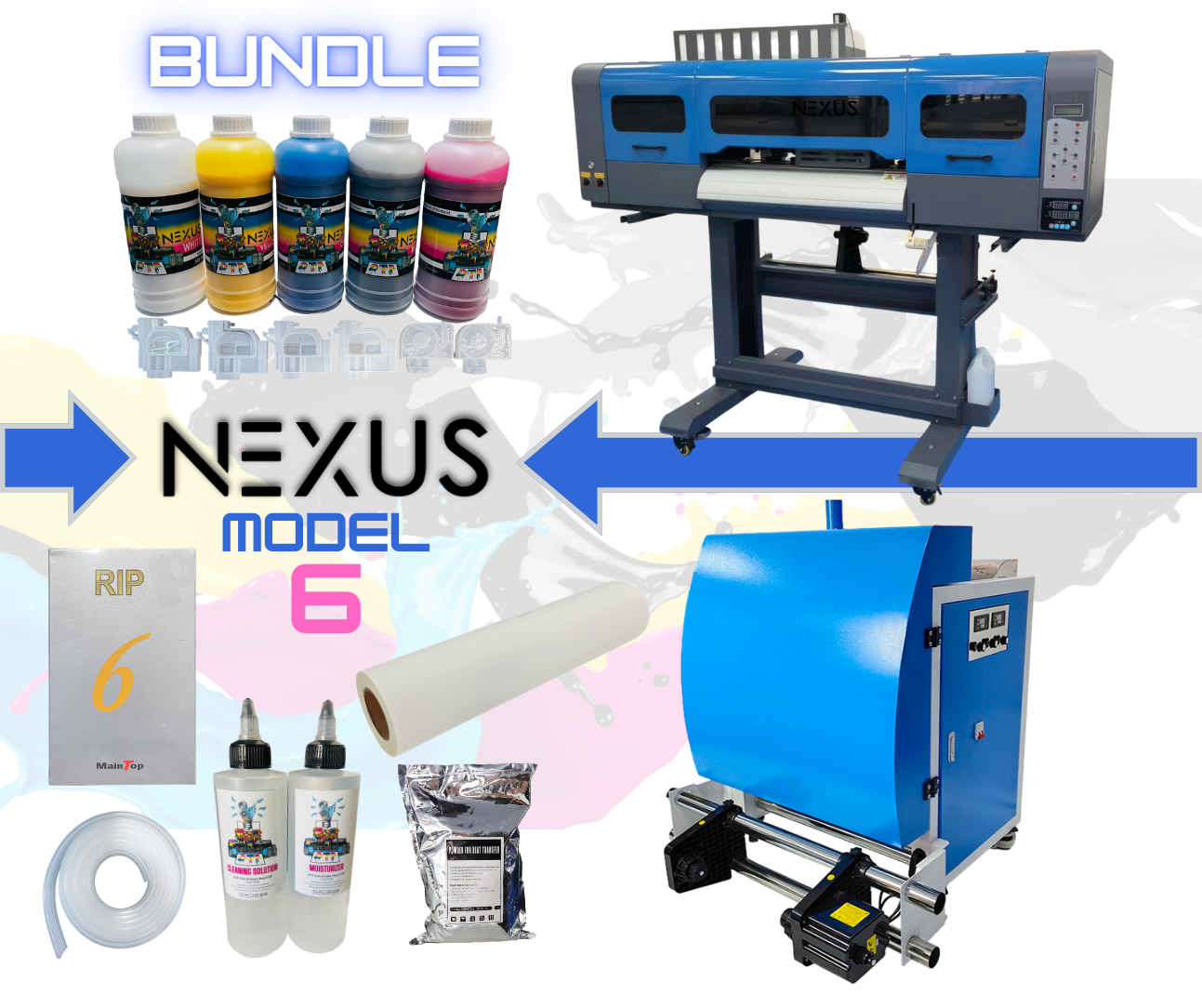

BUNDLE INCLUDES

• DTF Printer
• DTF Shaker / Oven

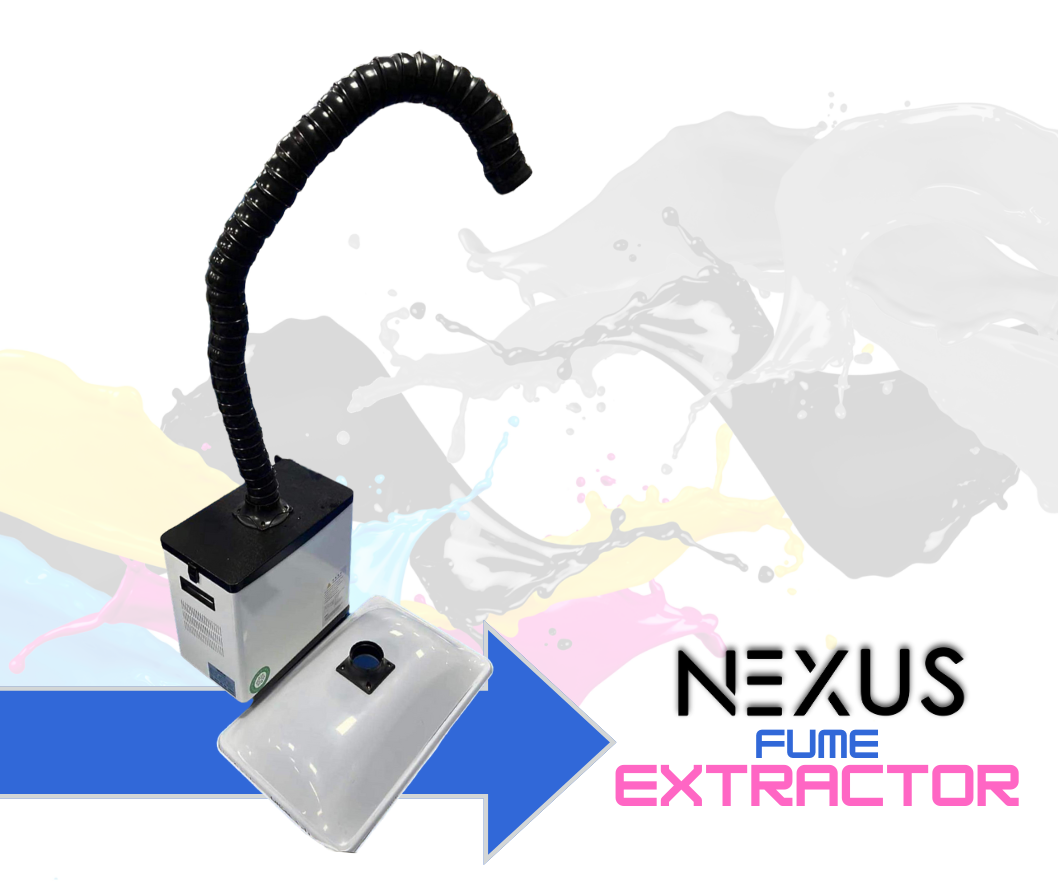

• Fume Extractor
• Ink - 250 ML each 9 Colors
• Film - 24Inch DTF Film Roll
• DTF Adhesive Powder
• Spare Dampers
• Maintop Printing Software
• 250ml - Cleaning Solution
• 250ml - Ink Pad Moisturizer

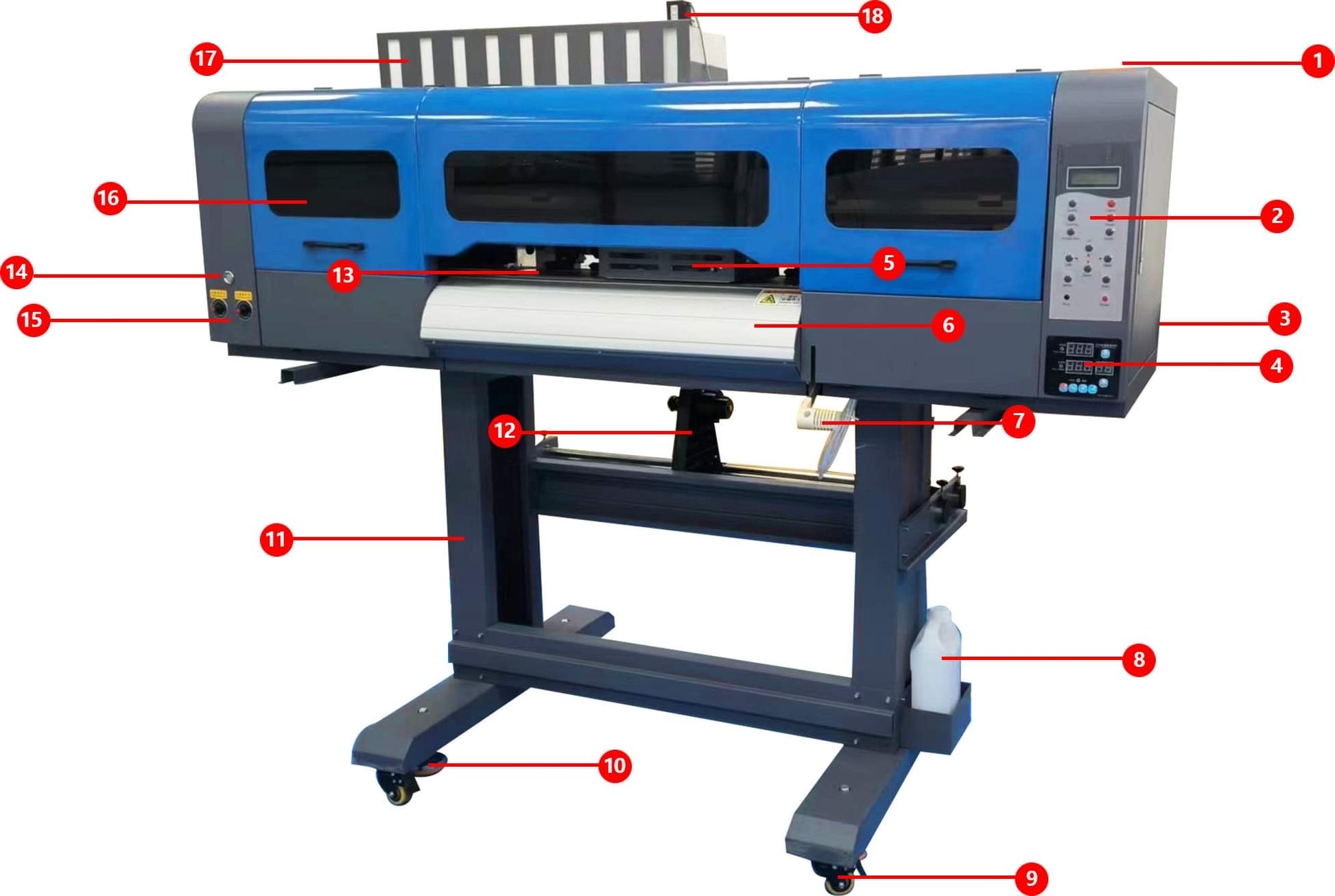

SYSTEM DETAILS

1. With paper sensing system, you can detect whether there is paper or not. (Can prevent the printer from running empty)
2. Mirrored maintenance compartment makes it easier to visualize the condition of the bottom of the printhead.
3. Easy-to-remove cover makes it easier to install printhead components.
4. Equipped with instruction manuals and parts installation guide diagrams, more effective prevention of non-compliant operation.
5. Disassembled frame for easy transportation and assembly.
6. Ink stack can be manually adjusted height, more convenient maintenance
7. Equipped with emergency switch, fault can be arbitrary emergency stops
8. Equipped with ink chuck to prevent ink from flowing back when the equipment is closed.
9. Equipped with 1000ml ink pot, large ink filling capacity, more durable printing.
10. Equipped with rack foot cup, fixed fuselage is more stable.
11.Hansen board card High precision, high speed and stable network interface board card.
12. Suction platform material operation more stable
13. Eight-color printing, color reproduction is more realistic, color vibrant and prominent
14. High-precision printhead printing, clearer images
15 temperature control, lighting integrated control panel, easy to operate
16. Equipped with ink cart left and right sides of the anti-collision system
